5/8" 2-Flute Solid Carbide Square End Mill - OSG 20215300

OSG

5/8" 2-Flute Solid Carbide Square End Mill - OSG 20215300

MFR# 20215300Series 2021

$140.85List $180.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes2
MaterialSolid Carbide

Description

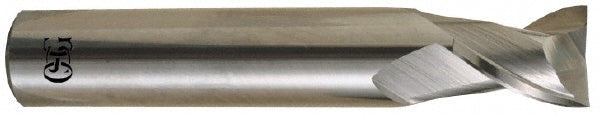

The OSG 20215300 is a 5/8 2-flute Solid Carbide square end mill. 3/4 length of cut, 3-1/2 overall length. Series 2021.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in3/4
Length typeStub
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in3-1/2
Shank diameter in5/8
Variable helixNo
Variable indexNo
