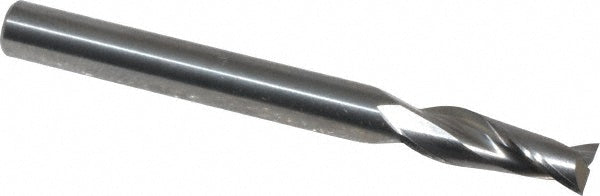

3/16" 2-Flute Solid Carbide Square End Mill - OSG 20220900

OSG

3/16" 2-Flute Solid Carbide Square End Mill - OSG 20220900

MFR# 20220900Series 2022

$29.11List $37.34 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes2
MaterialSolid Carbide

Description

The OSG 20220900 is a 3/16 2-flute Solid Carbide square end mill. 9/16 length of cut, 2 overall length. Series 2022.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in9/16
Length typeRegular
Mill diameter in3/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in2
Shank diameter in3/16
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

SGS3/16" 2-Flute Solid Carbide Square End Mill - SGS 34621 $26.77 Seco3/16" 2-Flute Solid Carbide Square End Mill - Seco 17002953 $30.57 SGS3/16" 2-Flute Solid Carbide Square End Mill, TiB2 - SGS 34661 $32.26 Kennametal0.1875" 2-Flute Solid Carbide Single End Mill - Kennametal 3876352 $43.17
