1/2" 2-Flute Solid Carbide Corner Radius End Mill - OSG 20230600

OSG

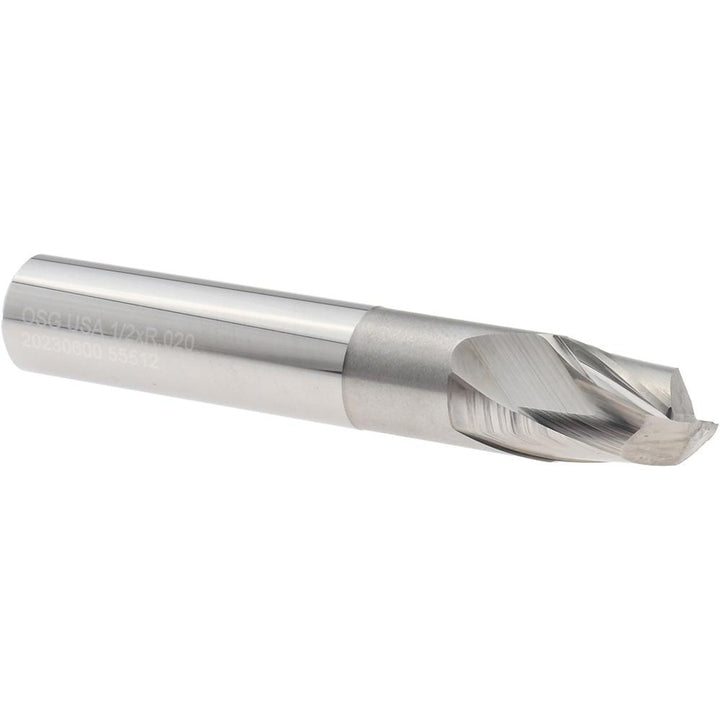

1/2" 2-Flute Solid Carbide Corner Radius End Mill - OSG 20230600

MFR# 20230600Series 2023

$100.39List $128.75 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The OSG 20230600 is a 1/2 2-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 1/2 length of cut, 3 overall length. Series 2023.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1/2
Length typeRegular
Material applicationNon-Ferrous Metal
Material removal typeRoughing
Mill diameter in1/2
Mill diameter tolerance0.0000/-0.0020 in
Neck diameter0.4960
Number of flutes2
Overall length in3
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in1-3/8
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
