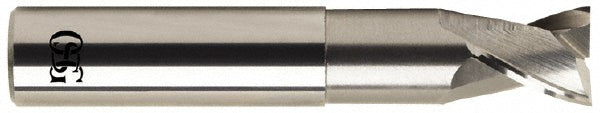

5/8" 2-Flute Solid Carbide Square End Mill - OSG 20230900

OSG

5/8" 2-Flute Solid Carbide Square End Mill - OSG 20230900

MFR# 20230900Series 2023

$160.09List $205.32 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes2
MaterialSolid Carbide

Description

The OSG 20230900 is a 5/8 2-flute Solid Carbide square end mill. 5/8 length of cut, 3-1/2 overall length. Series 2023.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.002 in
Neck diameter0.6210
Number of flutes2
Overall length in3-1/2
Reach length in1-5/8
Shank diameter in5/8
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
