OSG

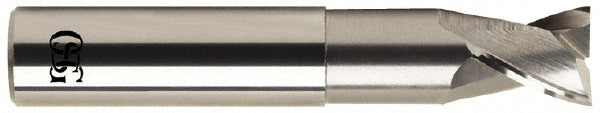

5/8" 2-Flute Solid Carbide Corner Radius End Mill - OSG 20231000

MFR# 20231000Series 2023

$184.08List $236.08 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes2

MaterialSolid Carbide

CoatingUncoated

Description

The OSG 20231000 is a 5/8 2-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 5/8 length of cut, 3-1/2 overall length. Series 2023.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleMedium

Length of cut in5/8

Length typeRegular

Material applicationNon-Ferrous Metal

Material removal typeRoughing

Mill diameter in5/8

Mill diameter tolerance0.0000 to -0.0020 in

Neck diameter0.6210

Number of flutes2

Overall length in3-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in1-5/8

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
