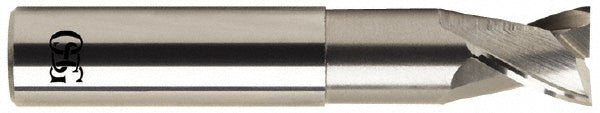

1" 2-Flute Solid Carbide Square End Mill - OSG 20231700

OSG

1" 2-Flute Solid Carbide Square End Mill - OSG 20231700

MFR# 20231700Series 2023

$441.26List $565.94 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes2
MaterialSolid Carbide

Description

The OSG 20231700 is a 1 2-flute Solid Carbide square end mill. 1 length of cut, 5 overall length. Series 2023.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Mill diameter in1
Mill diameter tolerance+0.000/-0.002 in
Neck diameter0.9920
Number of flutes2
Overall length in5
Reach length in2-5/8
Shank diameter in1
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
