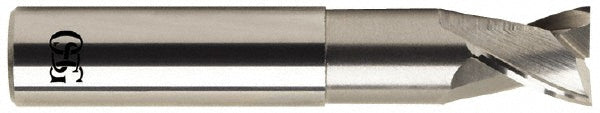

1" 2-Flute Solid Carbide Corner Radius End Mill - OSG 20231800

OSG

1" 2-Flute Solid Carbide Corner Radius End Mill - OSG 20231800

MFR# 20231800Series 2023

$507.45List $650.83 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

The OSG 20231800 is a 1 2-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 1 length of cut, 5 overall length. Series 2023.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleMedium
Length of cut in1
Length typeRegular
Material applicationNon-Ferrous Metal
Material removal typeRoughing
Mill diameter in1
Mill diameter tolerance0.0000 to -0.0020 in
Neck diameter0.9920
Number of flutes2
Overall length in5
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in2-5/8
Shank diameter in1
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
