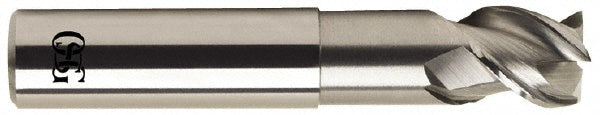

5/8in" 3-Flute Solid Carbide Corner Radius End Mill - OSG 20431100

MFR# 20431100Series 2043

$184.08List $236.08 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8in

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The OSG 20431100 is a 5/8in 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 5/8in length of cut, 3-1/2 overall length. Series 2043.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in5/8in

Length typeRegular

Material applicationNon-Ferrous Metal

Material removal typeRoughing

Mill diameter in5/8in

Mill diameter tolerance0.0000/-0.0020 in

Neck diameter0.6210in

Number of flutes3

Overall length in3-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in1-5/8

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
