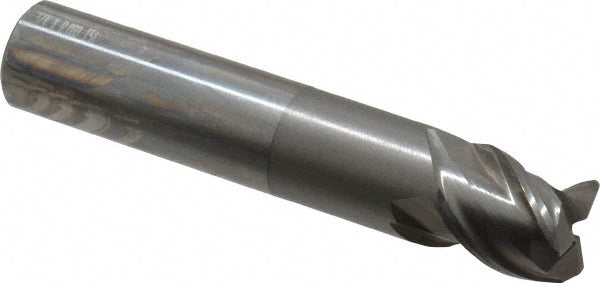

3/4" 3-Flute Solid Carbide Corner Radius End Mill - OSG 20431400

MFR# 20431400Series 2043

$258.34List $331.34 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingUncoated

Description

The OSG 20431400 is a 3/4 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 3/4 length of cut, 4 overall length. Series 2043.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleHigh

Length of cut in3/4

Length typeRegular

Material applicationNon-Ferrous Metal

Material removal typeRoughing

Mill diameter in3/4

Mill diameter tolerance0.0000 to -0.0020 in

Neck diameter0.7460

Number of flutes3

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in2

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
