OSG
5/8" 3-Flute Solid Carbide Square End Mill - OSG 20480900
MFR# 20480900Series 2048
$224.09List $287.41
Save 22%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes3
MaterialSolid Carbide
Description

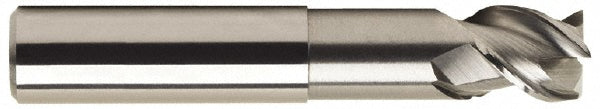

The OSG 20480900 is a 5/8 3-flute Solid Carbide square end mill. 5/8 length of cut, 6 overall length. Series 2048.
Specifications
CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeLong
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.002 in
Neck diameter0.6210
Number of flutes3
Overall length in6
Reach length in2-3/8
Shank diameter in5/8
Variable helixNo
Variable indexNo
