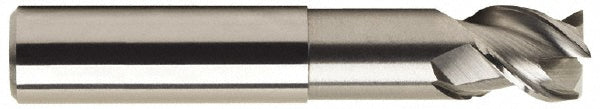

1" 3-Flute Solid Carbide Corner Radius End Mill - OSG 20481800

OSG

1" 3-Flute Solid Carbide Corner Radius End Mill - OSG 20481800

MFR# 20481800Series 2048

$532.82List $683.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes3
MaterialSolid Carbide
CoatingUncoated

Description

The OSG 20481800 is a 1 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 1 length of cut, 6 overall length. Series 2048.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleHigh
Length of cut in1
Length typeLong
Material applicationNon-Ferrous Metal
Material removal typeRoughing
Mill diameter in1
Mill diameter tolerance0.0000 to -0.0020 in
Neck diameter0.9920
Number of flutes3
Overall length in6
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in3-3/8
Shank diameter in1
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
