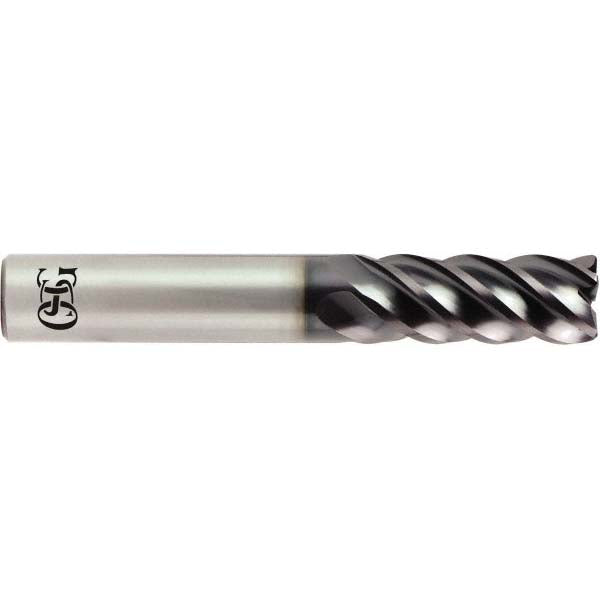

1" 5-Flute Solid Carbide Corner Radius End Mill, EXO - OSG 20551002

OSG

1" 5-Flute Solid Carbide Corner Radius End Mill, EXO - OSG 20551002

MFR# 20551002Series 2055

$573.54List $735.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes5
MaterialSolid Carbide
CoatingEXO

Description

The OSG 20551002 is a 1 5-flute Solid Carbide (Ultra Fine Micrograin) corner radius end mill with a EXO finish for longer tool life. Suited for stainless steel, superalloys & titanium, hard material. 1-1/2 length of cut, 4 overall length. Series 2055.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishEXO
Coolant throughNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleVariable
Length of cut in1-1/2
Length typeStub
Material applicationStainless Steel; Superalloys & Titanium; Hard Material
Material gradeUltra Fine Micrograin
Material removal typeRoughing & Finishing
Mill diameter in1
Mill diameter tolerance0.0000 to -0.0020 in
Number of flutes5
Overall length in4
PitchNormal
Primary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Shank diameter in1
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexYes
