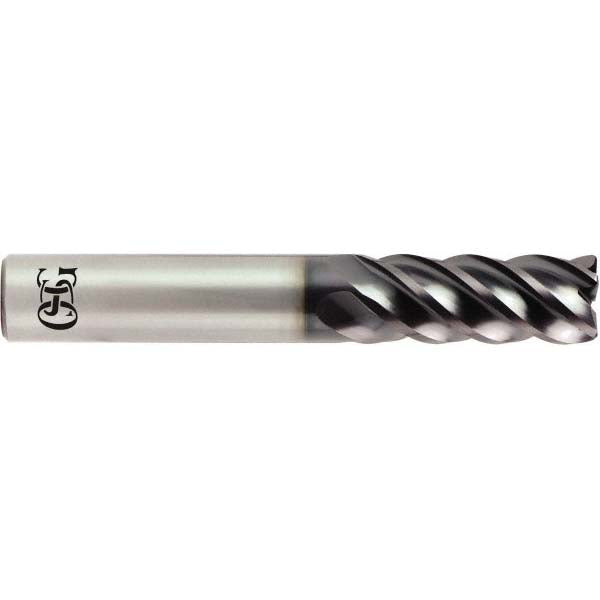

5/16" 5-Flute Solid Carbide Corner Radius End Mill, EXO - OSG 20553123

MFR# 20553123Series 2055

$76.26List $97.81 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes5

MaterialSolid Carbide

CoatingEXO

Description

The OSG 20553123 is a 5/16 5-flute Solid Carbide (Ultra Fine Micrograin) corner radius end mill with a EXO finish for longer tool life. Suited for stainless steel, superalloys & titanium, hard material. 3/4 length of cut, 2-1/2 overall length. Series 2055.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishEXO

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Helix styleVariable

Length of cut in3/4

Length typeRegular

Material applicationStainless Steel; Superalloys & Titanium; Hard Material

Material gradeUltra Fine Micrograin

Material removal typeRoughing & Finishing

Mill diameter in5/16

Mill diameter tolerance0.0000 to -0.0020 in

Number of flutes5

Overall length in2-1/2

PitchNormal

Primary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
