OSG

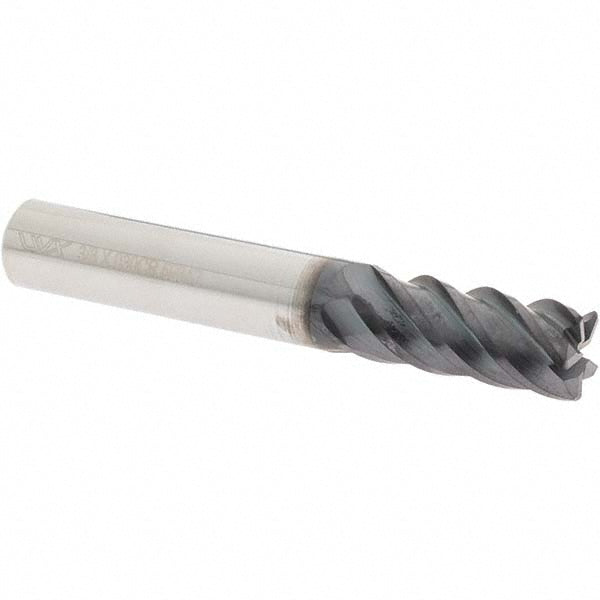

3/8" 5-Flute Solid Carbide Corner Radius End Mill, EXO - OSG 20553752
MFR# 20553752Series 2055
$92.63List $118.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
CoatingEXO
Description
The OSG 20553752 is a 3/8 5-flute Solid Carbide (Ultra Fine Micrograin) corner radius end mill with a EXO finish for longer tool life. Suited for stainless steel, superalloys & titanium, hard material. 7/8 length of cut, 2-1/2 overall length. Series 2055.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishEXO
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleVariable
Length of cut in7/8
Length typeRegular
Material applicationStainless Steel; Superalloys & Titanium; Hard Material
Material gradeUltra Fine Micrograin
Material removal typeRoughing & Finishing
Mill diameter in3/8
Mill diameter tolerance0.0000 to -0.0020 in
Number of flutes5
Overall length in2-1/2
PitchNormal
Primary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Shank diameter in3/8
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixYes
Variable indexYes
