OSG
#53 Drill Bit, 135° point - OSG 215-0595
MFR# 215-0595Series 215
$10.70List $13.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description

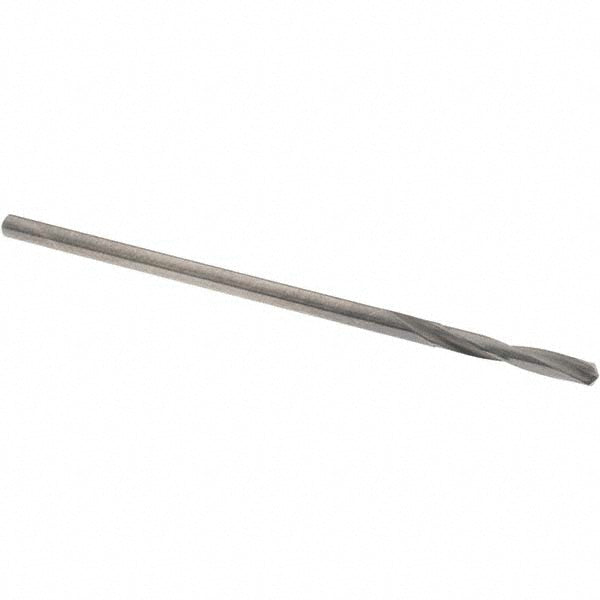

The OSG 215-0595 is a #53 drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. 1/2 flute length, 1-1/2 overall length. Series 215.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit gradeHeavy Duty
Drill bit size0.0595
Drill bit size range0.0500 - 0.1000
Drill bit size wire#53
Drill point angle135
Flute by diameter ratio5xD
Flute length in1/2
Flute typeSlow Spiral
Number of flutes2
Overall length in1-1/2
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank diameter0.0594
Shank typeStraight
Spiral typeSlow
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
