OSG

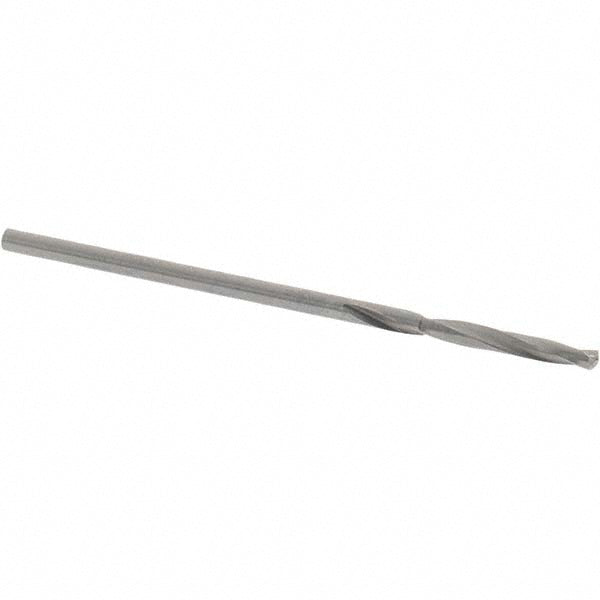

1/16" Solid Carbide Jobber Drill Bit, 135° point - OSG 215-0625
MFR# 215-0625Series 215
$10.85List $13.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/16
Flutes2
Description
The OSG 215-0625 is a 1/16" Solid Carbide Jobber drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. 5/8 flute length, 1-5/8 overall length. Series 215.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit size in1/16
Drill bit size range0.0000 to 0.1000
Drill length typeJobber
Drill point angle135
Flute by diameter ratio5xD
Flute length in5/8
Flute typeSpiral
Number of flutes2
Overall length in1-5/8
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
