OSG

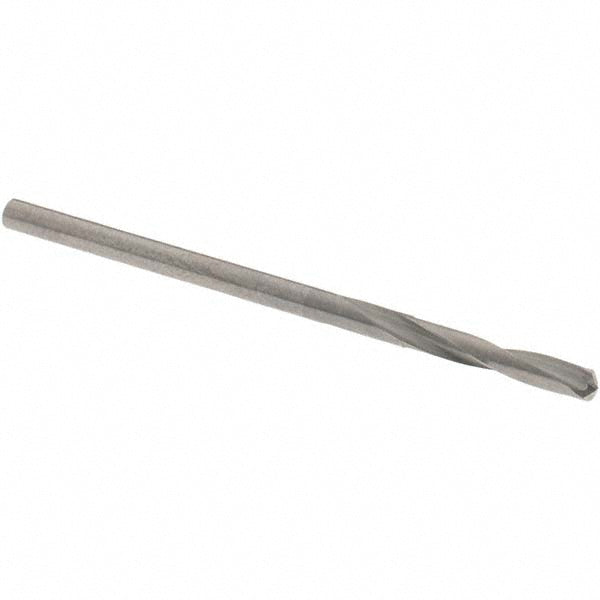

#43 Solid Carbide Jobber Drill Bit, 135° point - OSG 215-0890
MFR# 215-0890Series 215
$12.20List $15.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 215-0890 is a #43 Solid Carbide Jobber drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. 3/4 flute length, 1-3/4 overall length. Series 215.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit size0.0890
Drill bit size range0.0000 to 0.1000
Drill bit size wire#43
Drill length typeJobber
Drill point angle135
Flute by diameter ratio5xD
Flute length in3/4
Flute typeSpiral
Number of flutes2
Overall length in1-3/4
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank diameter (mm)43.00
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
