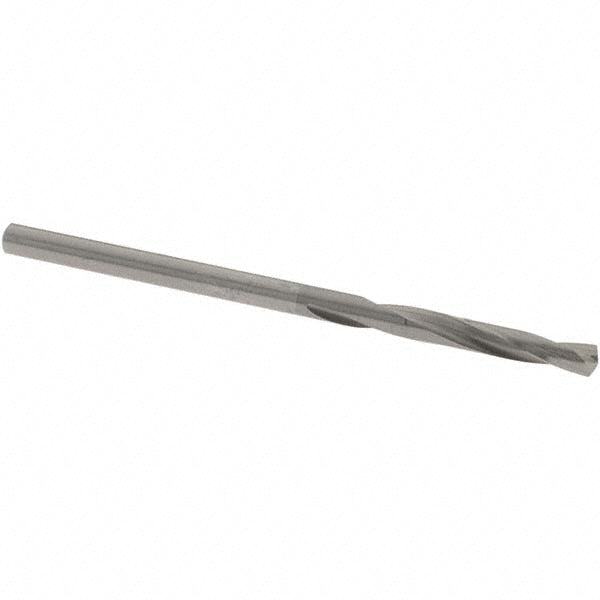

0.0945" Solid Carbide Jobber Drill Bit, 135° point - OSG 215-0945

OSG

0.0945" Solid Carbide Jobber Drill Bit, 135° point - OSG 215-0945

MFR# 215-0945Series 215

$12.54List $16.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The OSG 215-0945 is a 0.0945" Solid Carbide Jobber drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. Series 215.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit size0.0945
Drill bit size range0.0000 to 0.1000
Drill length typeJobber
Drill point angle135
Flute by diameter ratio5xD
Flute length (mm)21.00
Flute typeSpiral
Number of flutes2
Overall length (mm)46.00
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank diameter (mm)2.40
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
