OSG

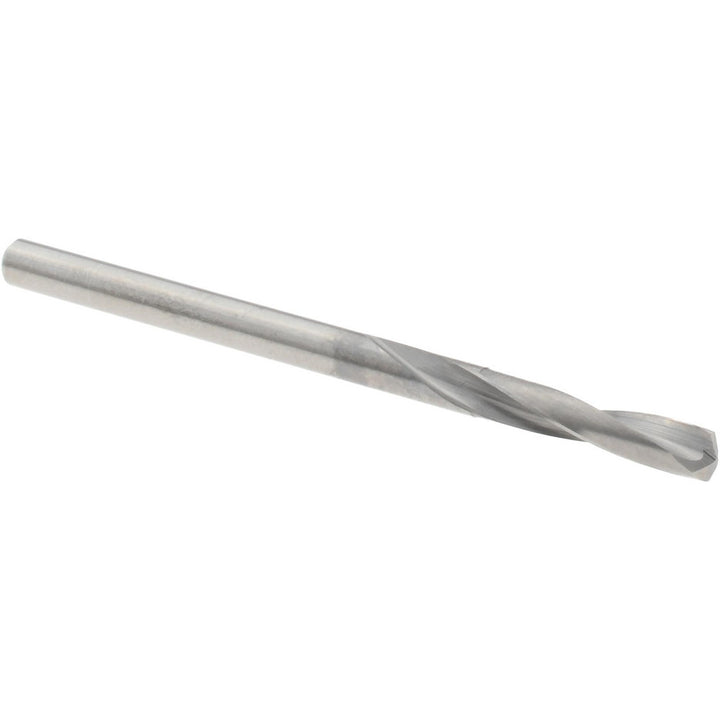

#32 Drill Bit, 135° point - OSG 215-1160
MFR# 215-1160Series 215
$14.50List $18.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 215-1160 is a #32 drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. 7/8 flute length, 1-7/8 overall length. Series 215.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit size0.1160
Drill bit size range0.1000 - 0.1500
Drill bit size wire#32
Drill point angle135
Flute by diameter ratio5xD
Flute length in7/8
Flute typeSpiral
Number of flutes2
Overall length in1-7/8
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank diameter0.1161
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
