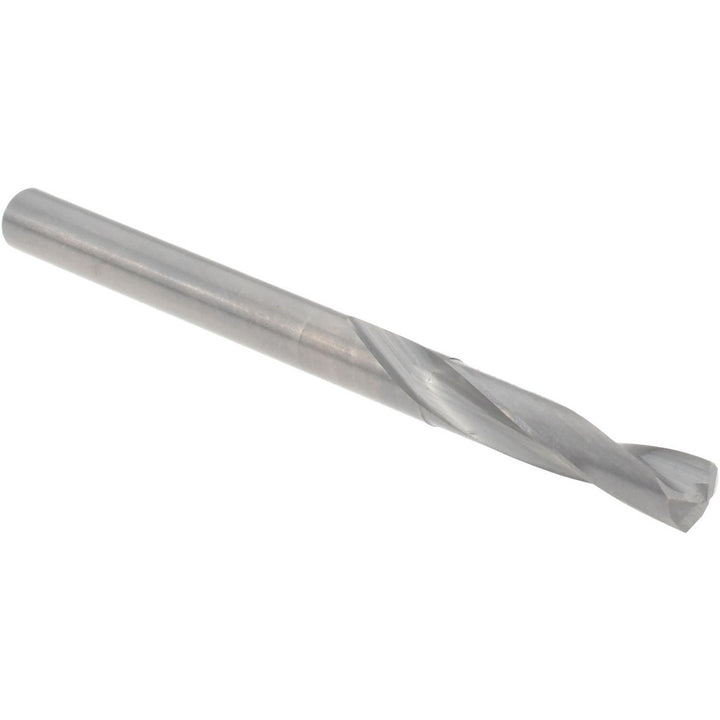

#26 Drill Bit, 135° point - OSG 215-1470

OSG

#26 Drill Bit, 135° point - OSG 215-1470

MFR# 215-1470Series 215

$17.90List $22.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The OSG 215-1470 is a #26 drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. 1 flute length, 2-1/16 overall length. Series 215.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit size0.1470
Drill bit size range0.1000 - 0.1500
Drill bit size wire#26
Drill point angle135
Flute by diameter ratio5xD
Flute length in1
Flute typeSpiral
Number of flutes2
Overall length in2-1/16
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank diameter0.1469
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
