OSG

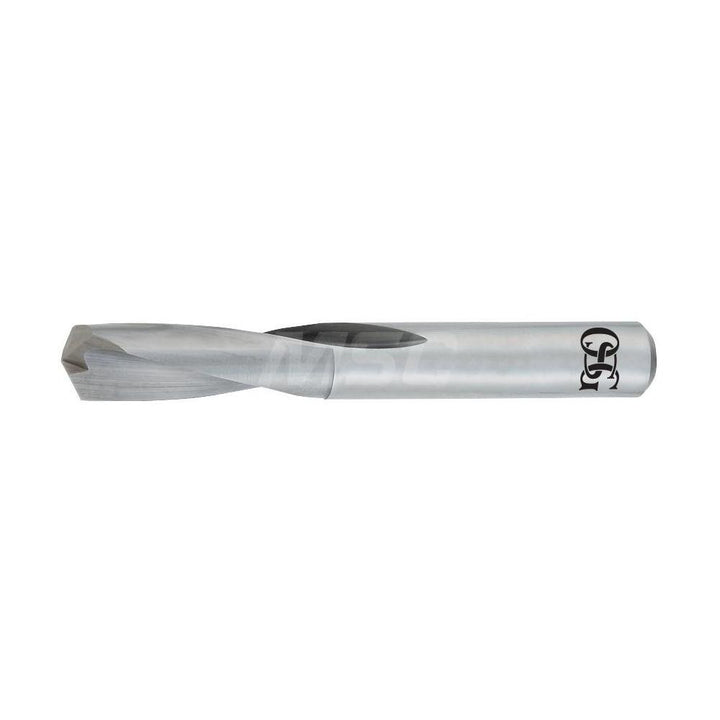

#25 Solid Carbide Drill Bit, 135° point - OSG 215-1495
MFR# 215-1495Series 215
$22.08List $27.83
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 215-1495 is a #25 Solid Carbide drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. Series 215.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit materialSolid Carbide
Drill bit size0.1495
Drill bit size wire#25
Drill point angle degrees135
Flute length (mm)25.40
Flute typeSpiral
Number of flutes2
Overall length (mm)52.40
Point typeWeb-Thinned
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank diameter (mm)3.80
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
