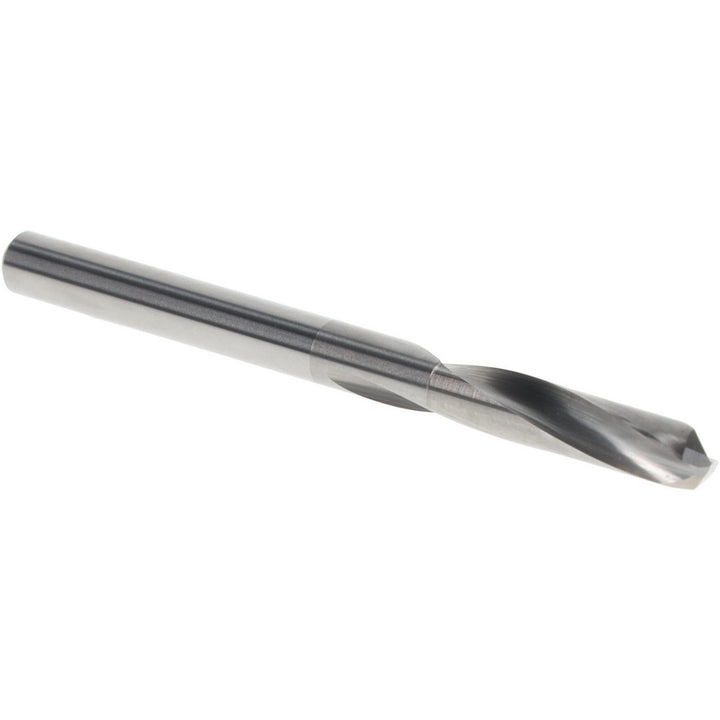

#18 Drill Bit, 135° point - OSG 215-1695

OSG

#18 Drill Bit, 135° point - OSG 215-1695

MFR# 215-1695Series 215

$22.29List $28.60 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The OSG 215-1695 is a #18 drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. 1-1/16 flute length, 2-1/8 overall length. Series 215.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit size0.1695
Drill bit size range0.1500 - 0.2000
Drill bit size wire#18
Drill point angle135
Flute by diameter ratio5xD
Flute length in1-1/16
Flute typeSpiral
Number of flutes2
Overall length in2-1/8
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank diameter0.1697
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
