OSG

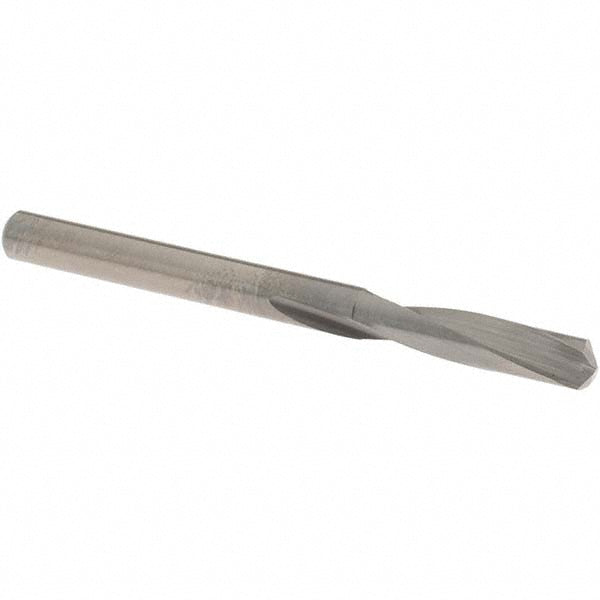

#15 Solid Carbide Jobber Drill Bit, 135° point - OSG 215-1800
MFR# 215-1800Series 215
$23.11List $29.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 215-1800 is a #15 Solid Carbide Jobber drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. 1-1/8 flute length, 2-3/16 overall length. Series 215.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit size0.1800
Drill bit size range0.1500 to 0.2000
Drill bit size wire#15
Drill length typeJobber
Drill point angle135
Flute by diameter ratio5xD
Flute length in1-1/8
Flute typeSpiral
Number of flutes2
Overall length in2-3/16
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank diameter (mm)15.00
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
