OSG

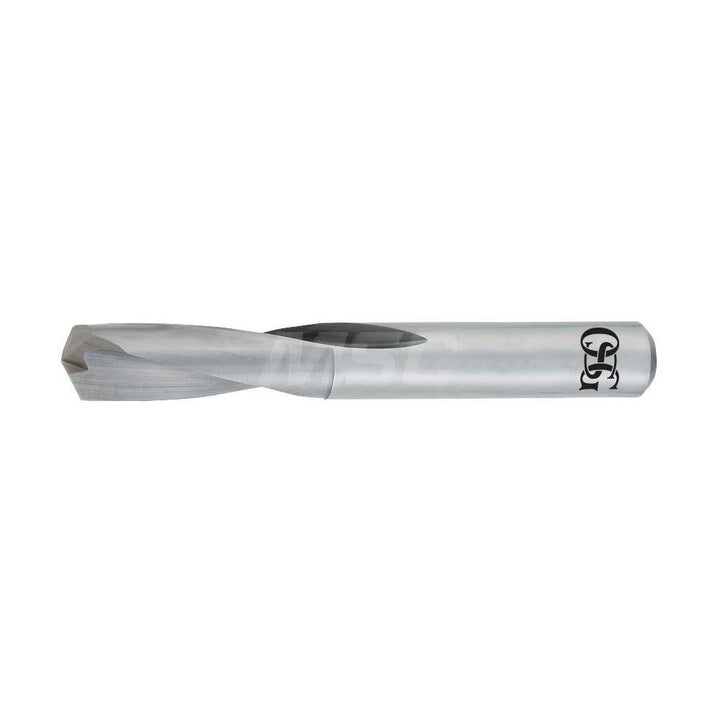

3/16" Solid Carbide Drill Bit, 135° point - OSG 215-1875
MFR# 215-1875Series 215
$20.70List $26.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/16
Flutes2
Description
The OSG 215-1875 is a 3/16" Solid Carbide drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. Series 215.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in3/16
Drill point angle degrees135
Flute length (mm)28.60
Flute typeSpiral
Number of flutes2
Overall length (mm)55.60
Point typeWeb-Thinned
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
