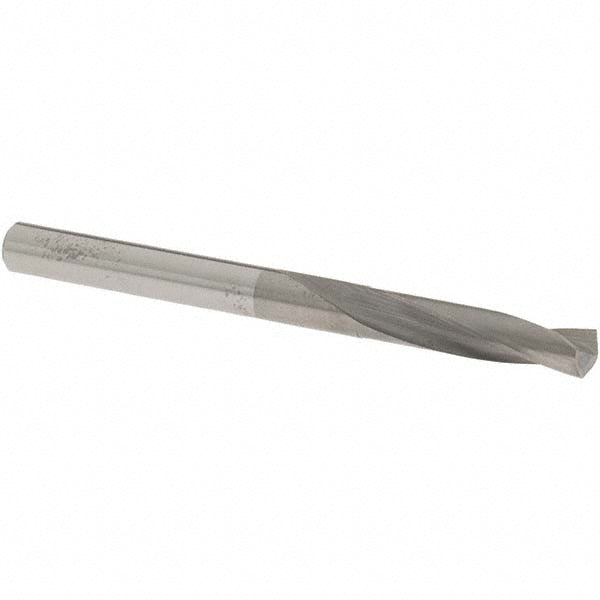

#6 Solid Carbide Jobber Drill Bit, 135° point - OSG 215-2040
MFR# 215-2040Series 215
$23.05List $29.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 215-2040 is a #6 Solid Carbide Jobber drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. 1-1/4 flute length, 2-3/8 overall length. Series 215.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit size0.2040
Drill bit size range0.2000 to 0.2500
Drill bit size wire#6
Drill length typeJobber
Drill point angle135
Flute by diameter ratio5xD
Flute length in1-1/4
Flute typeSpiral
Number of flutes2
Overall length in2-3/8
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
