OSG

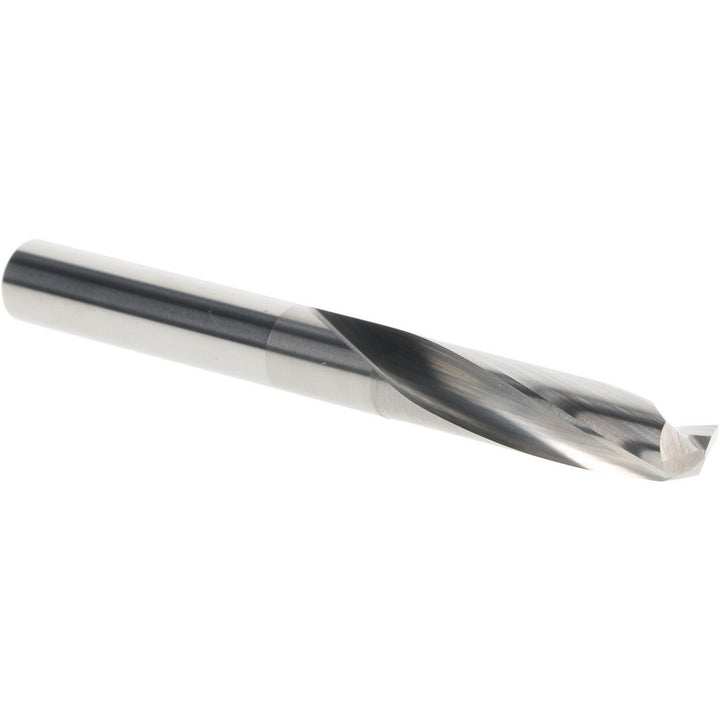

9/32" Drill Bit, 135° point - OSG 215-2812
MFR# 215-2812Series 215
$35.98List $46.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/32
Flutes2
Description
The OSG 215-2812 is a 9/32" drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. 1-1/2 flute length, 2-11/16 overall length. Series 215.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit size in9/32
Drill bit size range0.2500 - 0.3000
Drill point angle135
Flute by diameter ratio5xD
Flute length in1-1/2
Flute typeSpiral
Number of flutes2
Overall length in2-11/16
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank diameter0.2813
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
