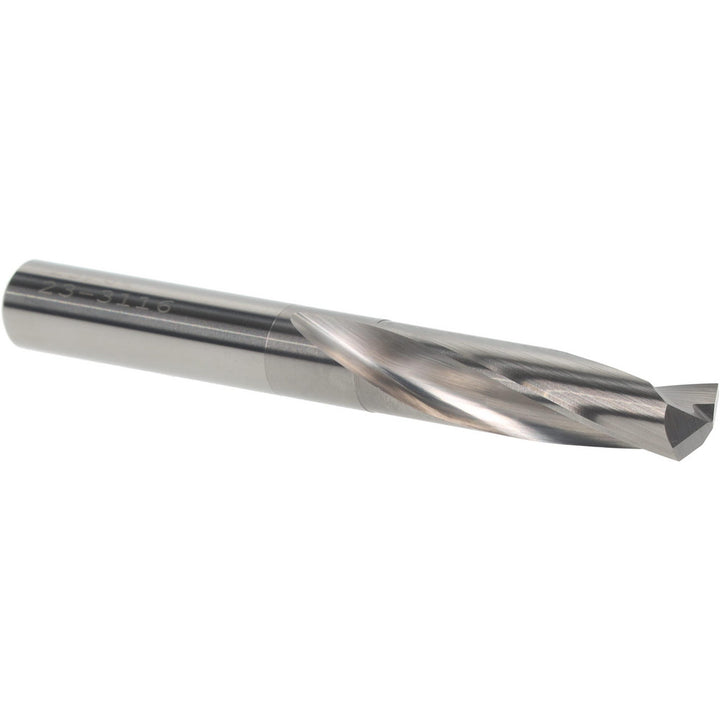

23/64" Drill Bit, 135° point - OSG 215-3594

OSG

23/64" Drill Bit, 135° point - OSG 215-3594

MFR# 215-3594Series 215

$64.42List $82.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size23/64
Flutes2

Description

The OSG 215-3594 is a 23/64" drill bit, 135° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum silicate, nickel alloy, titanium, titanium alloy. 1-3/4 flute length, 3-1/16 overall length. Series 215.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit size in23/64
Drill bit size range0.3500 - 0.4000
Drill point angle135
Flute by diameter ratio5xD
Flute length in1-3/4
Flute typeSpiral
Number of flutes2
Overall length in3-1/16
Point typeStandard
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum Silicate; Nickel Alloy; Titanium; Titanium Alloy
Shank diameter0.3594
Shank typeStraight-Cylindrical
Spiral typeSlow
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
