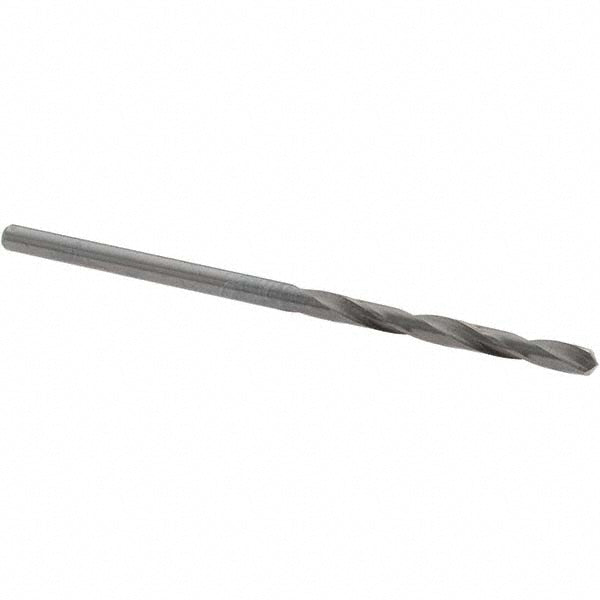

5/64" Solid Carbide Drill Bit, 118° point - OSG 220-0781
MFR# 220-0781Series 220D
$10.49List $13.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/64
Flutes2
Description
The OSG 220-0781 is a 5/64" Solid Carbide drill bit, 118° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum, aluminum alloy, aluminum silicate. Series 220D.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in5/64
Drill point angle degrees118
Flute length (mm)22.20
Flute typeSpiral
Number of flutes2
Overall length (mm)44.50
Point typeWeb-Thinned
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
