OSG

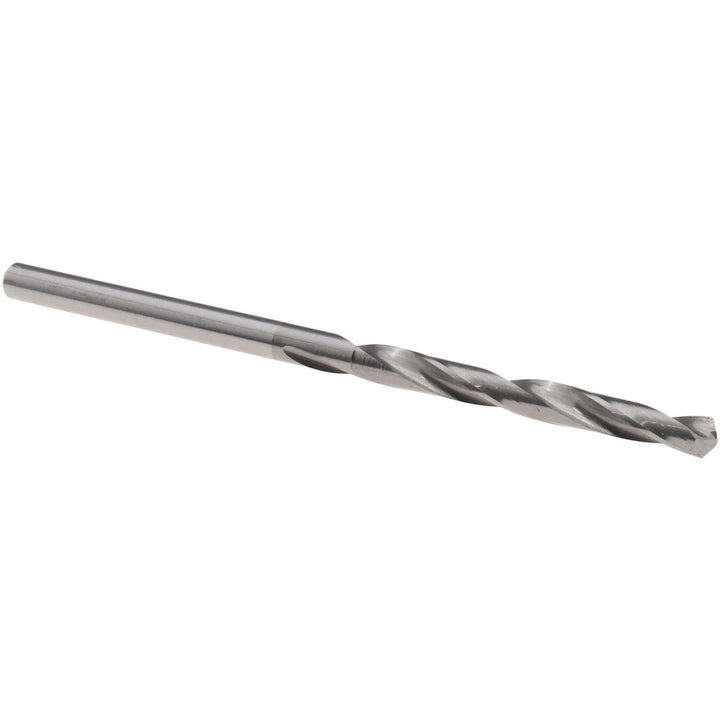

#33 Solid Carbide Drill Bit, 118° point - OSG 220-1130
MFR# 220-1130Series 220D
$13.57List $17.41
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 220-1130 is a #33 Solid Carbide drill bit, 118° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum, aluminum alloy, aluminum silicate. 1-1/4 flute length, 2-1/4 overall length. Series 220D.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit materialSolid Carbide
Drill bit size0.1130
Drill bit size range0.1000 - 0.1500
Drill bit size wire#33
Drill point angle degrees118
Flute length in1-1/4
Flute typeSpiral
Number of flutes2
Overall length in2-1/4
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)33.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
