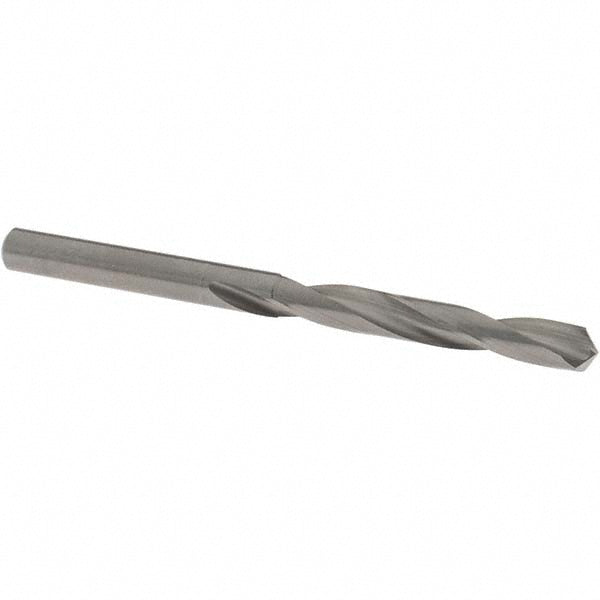

Letter B Solid Carbide Drill Bit, 118° point - OSG 220-2380
MFR# 220-2380Series 220D
$32.18List $41.27
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 220-2380 is a Letter B Solid Carbide drill bit, 118° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum, aluminum alloy, aluminum silicate. 2 flute length, 3-1/4 overall length. Series 220D.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size0.2380
Drill bit size letterB
Drill bit size range0.2000 - 0.2500
Drill point angle degrees118
Flute length in2
Flute typeSpiral
Number of flutes2
Overall length in3-1/4
Point typeWeb-Thinned
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)6.05
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
