OSG

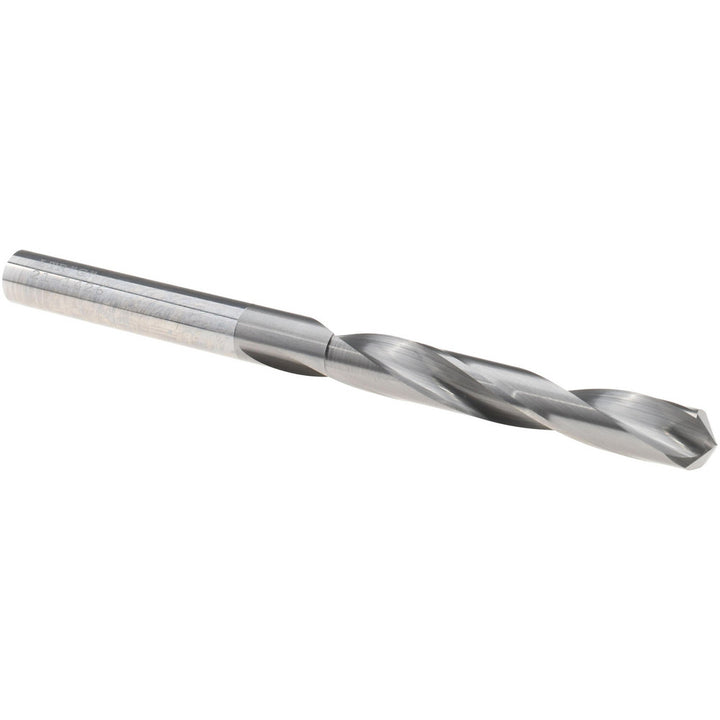

Letter G Solid Carbide Drill Bit, 118° point - OSG 220-2610
MFR# 220-2610Series 220D
$37.90List $48.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The OSG 220-2610 is a Letter G Solid Carbide drill bit, 118° point. Suited for steel, alloy steel, stainless steel, cast iron, aluminum, aluminum alloy, aluminum silicate. 2-1/8 flute length, 3-1/2 overall length. Series 220D.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit materialSolid Carbide
Drill bit size0.2610
Drill bit size letterG
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute length in2-1/8
Flute typeSpiral
Number of flutes2
Overall length in3-1/2
Point typeWeb-Thinned
Primary workpiece materialSteel; Alloy Steel; Stainless Steel; Cast Iron; Aluminum; Aluminum Alloy; Aluminum Silicate
Shank diameter (mm)6.63
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
