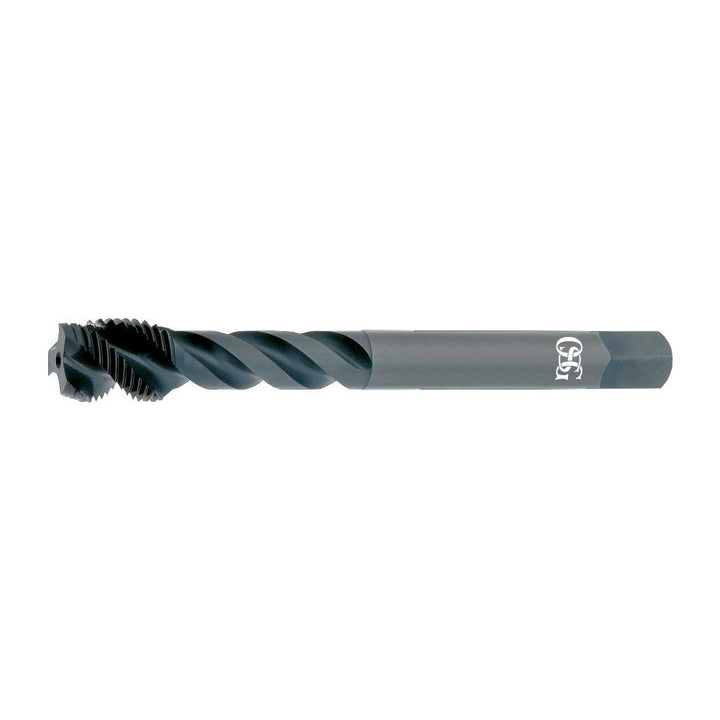

#4-40 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2211401
MFR# 2211401Series 220
$30.00List $38.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#4-40
CoatingSteam Oxide
Description
The OSG 2211401 is a #4-40 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Number of flutes3
Overall length11.23622472441
OversizeNo
Shank diameter1.894
Square length0.1875
Square size0.11
Threads per inch40
Thread directionRight Hand
Thread length0.196
Thread size in#4-40
Thread standardUNC
