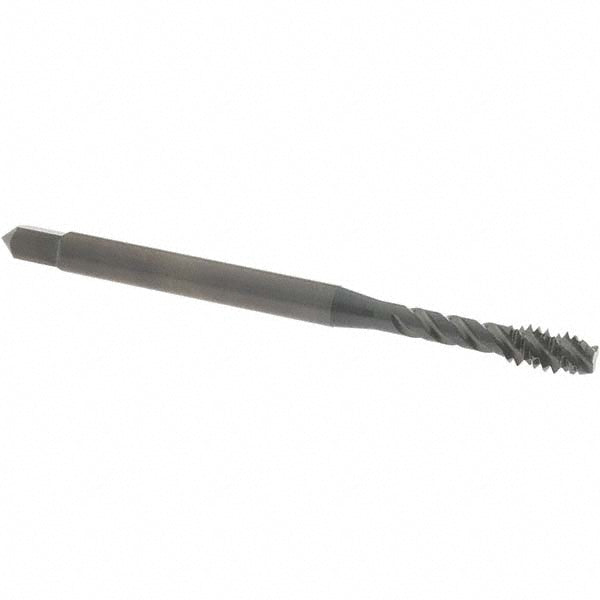

#10-24 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2213401
MFR# 2213401Series 220
$24.45List $31.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
CoatingSteam Oxide
Description
The OSG 2213401 is a #10-24 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length0.976
Number of flutes3
Overall length2.756
OversizeNo
Shank diameter0.194
Square length0.25
Square size0.152
Threads per inch24
Thread directionRight Hand
Thread length0.326
Thread size in#10-24
Thread standardUNC
