OSG

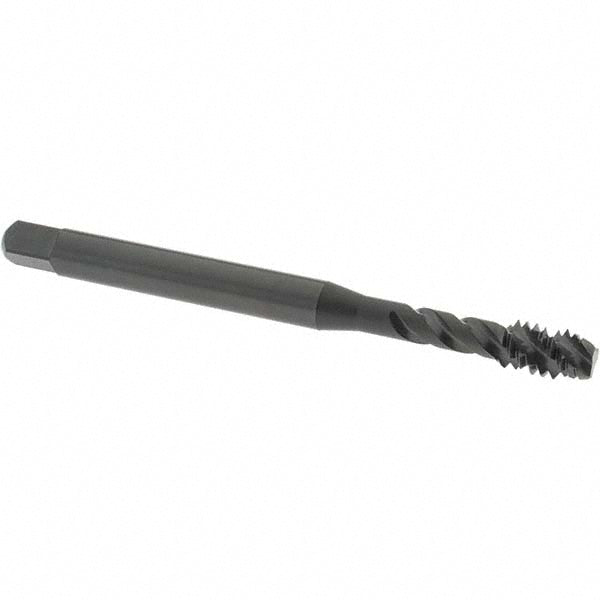

1/4-20 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2230001
MFR# 2230001Series 220
$29.66List $37.38
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingSteam Oxide
Description
The OSG 2230001 is a 1/4-20 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length1.177
Number of flutes3
Overall length3.15
OversizeNo
Shank diameter0.255
Square length0.3125
Square size0.191
Threads per inch20
Thread directionRight Hand
Thread length0.397
Thread size in1/4-20
Thread standardUNC
