OSG

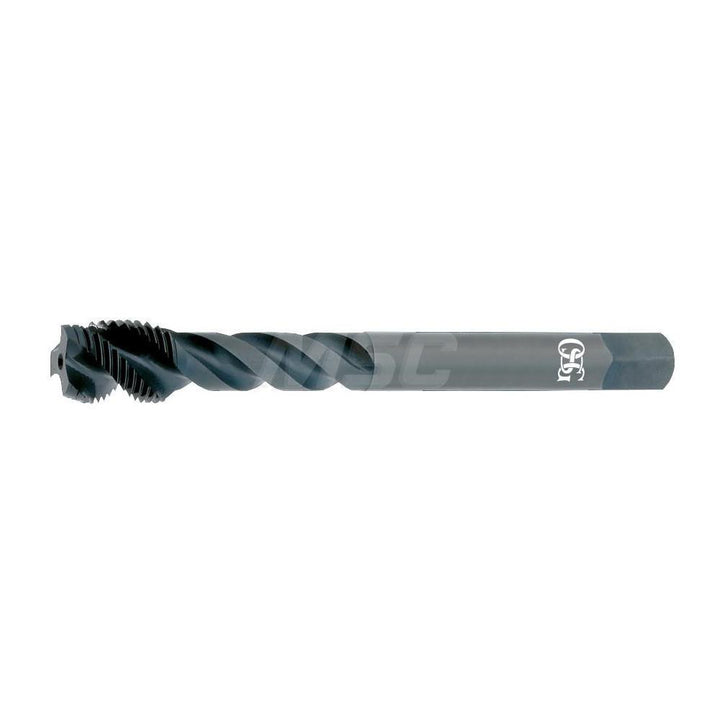

1/4-20 UNC Vanadium High-Speed Steel Tap, Oxide - OSG 2230001
MFR# OSG-2230001Series 220
$24.74List $31.17
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingOxide
Description
The OSG 2230001 is a 1/4-20 UNC Vanadium High-Speed Steel tap with a Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length1.1770
Number of flutes3
Overall length3.1500
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hardened Materials
Shank diameter0.2550
Square length0.3125
Square size0.1910
Threads per inch20
Thread directionRight Hand
Thread length0.3970
Thread size in1/4-20
Thread standardUNC
