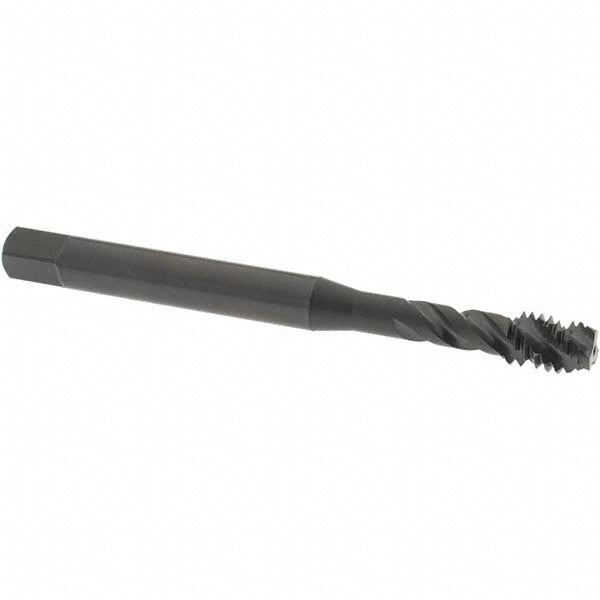

5/16-18 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2230801
MFR# 2230801Series 220
$32.54List $41.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-18
CoatingSteam Oxide
Description
The OSG 2230801 is a 5/16-18 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length1.377
Number of flutes3
Overall length3.543
OversizeNo
Shank diameter0.318
Square length0.375
Square size0.238
Threads per inch18
Thread directionRight Hand
Thread length0.444
Thread size in5/16-18
Thread standardUNC
