OSG

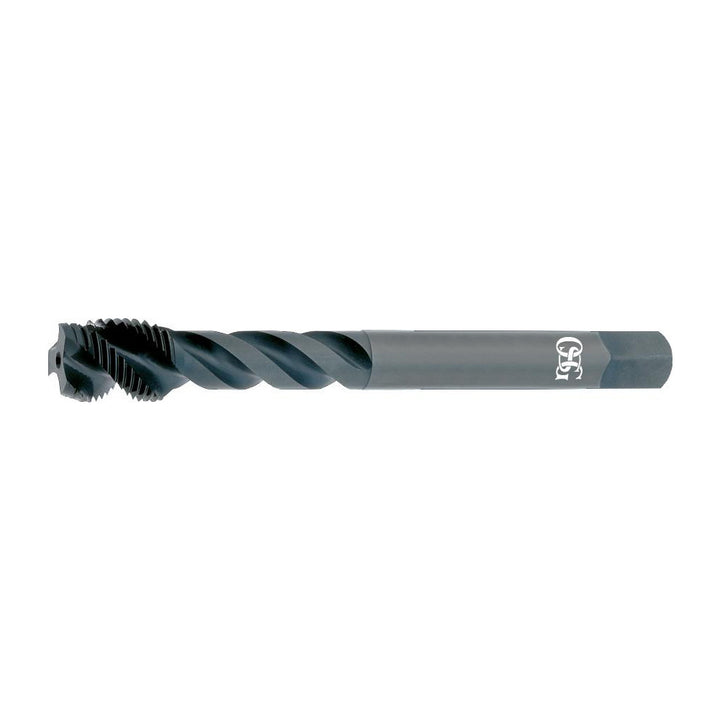

1/2-20 UNF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2232601
MFR# 2232601Series 220
$66.57List $85.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
CoatingSteam Oxide
Description
The OSG 2232601 is a 1/2-20 UNF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length1.933
Number of flutes3
Overall length3.937
OversizeNo
Shank diameter0.367
Square length0.4375
Square size0.275
Threads per inch20
Thread directionRight Hand
Thread length0.614
Thread size in1/2-20
Thread standardUNF
