OSG

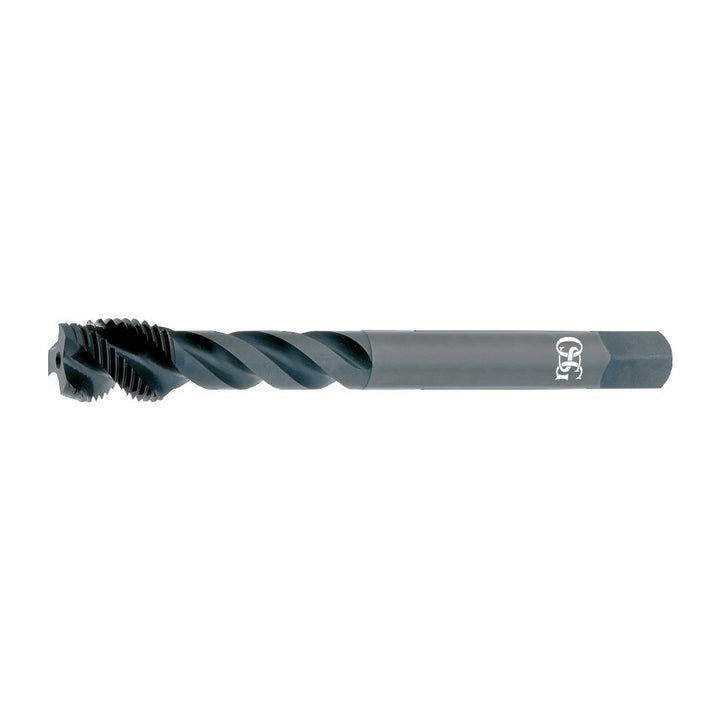

5/8-18 UNF Vanadium High-Speed Steel Tap, Oxide - OSG 2233401
MFR# 2233401Series 220
$117.25List $150.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-18
CoatingOxide
Description
The OSG 2233401 is a 5/8-18 UNF Vanadium High-Speed Steel tap with a Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishOxide
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Number of flutes4
Overall length3.9370
OversizeNo
Shank diameter0.4800
Square size0.3600
Thread directionRight Hand
Thread size in5/8-18
Thread standardUNF
