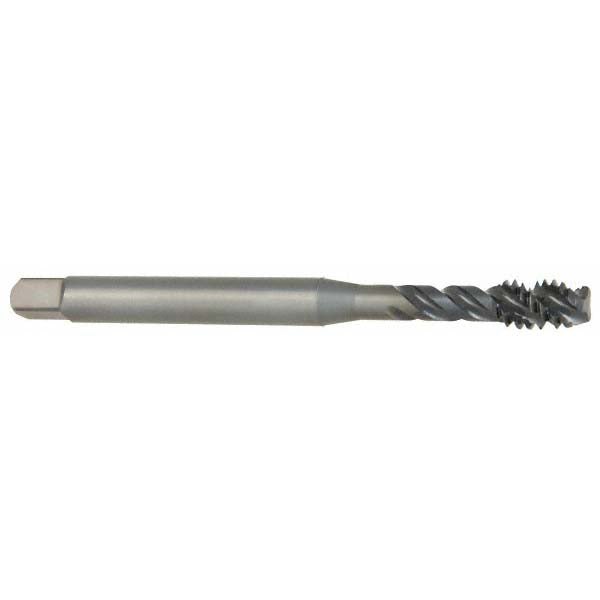

1-1/4-7 UNC Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2247701
MFR# 2247701Series 220
$602.81List $759.68
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1-1/4-7
CoatingSteam Oxide
Description
The OSG 2247701 is a 1-1/4-7 UNC Vanadium High-Speed Steel tap with a Steam Oxide finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length0.996
Number of flutes4
Overall length2.5
OversizeNo
Shank diameter0.255
Square length1
Square size0.766
Threads per inch7
Thread directionRight Hand
Thread length1.141
Thread size in1-1/4-7
Thread standardUNC
