OSG

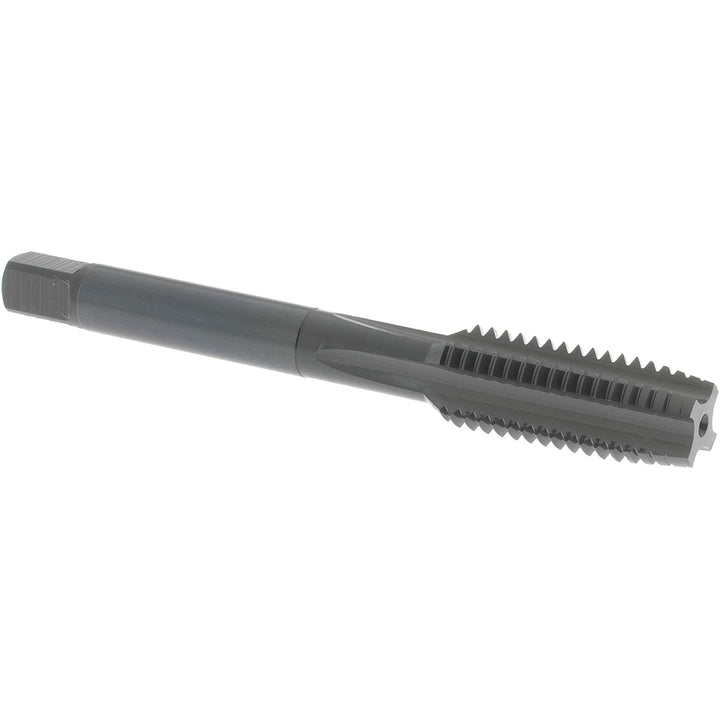

M10x1.5 Metric Coarse High-Speed Steel Standard Tap, Oxide - OSG 22633
MFR# 22633Series 121
$22.98List $29.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingOxide
Description
The OSG 22633 is a Metric Coarse High-Speed Steel Standard tap with a Oxide finish. 4 flutes.
Specifications
ApplicationTapping
ChamferPlug
Class of fit2B
Coating finishOxide
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length41.00
Number of flutes4
Overall length (mm)75.00
OversizeNo
Shank diameter (mm)7
Square length (mm)8
Square size (mm)5.5
Tap typeStandard
Thread directionRight Hand
Thread length (mm)24
Thread size (mm)M10x1.5
Thread standardMetric Coarse
