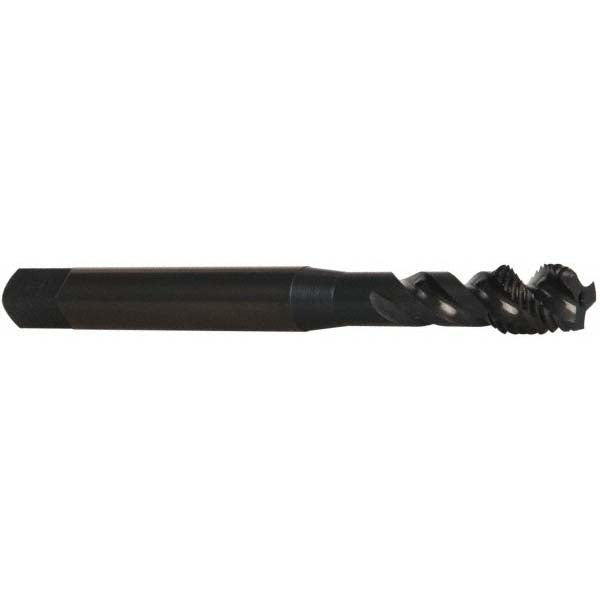

M10x1.25 MF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2291701
MFR# 2291701Series 229
$59.18List $74.58
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The OSG 2291701 is a MF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length2.433
Number of flutes3
Overall length4.25
OversizeNo
Shank diameter0.59
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)12
Thread size (mm)M10x1.25
Thread standardMF
