OSG

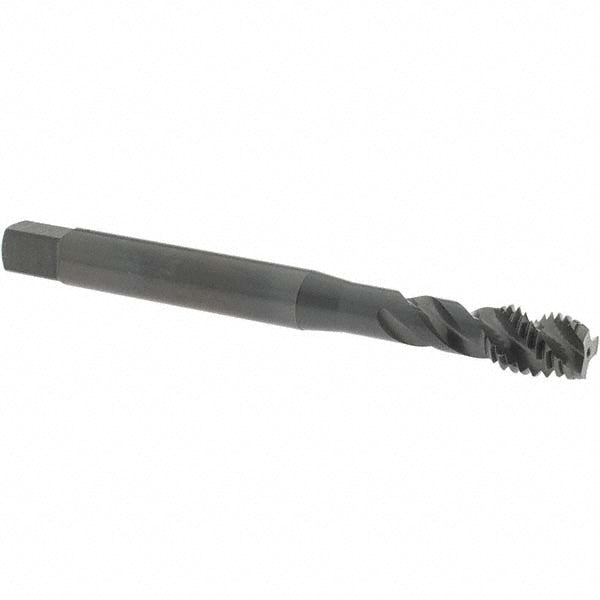

M10x1.5 M Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2291801
MFR# 2291801Series 229
$52.86List $67.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The OSG 2291801 is a M Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length (mm)39
Number of flutes3
Overall length3.9370
OversizeNo
Shank diameter0.3810
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)12
Thread size (mm)M10x1.5
Thread standardM
