OSG

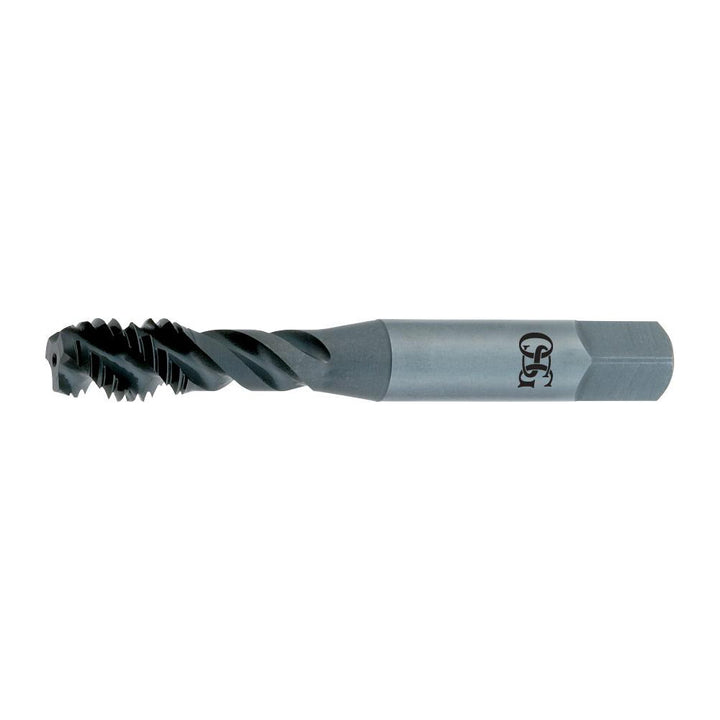

M14x1.5 MF Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2292501
MFR# 2292501Series 229
$96.12List $123.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The OSG 2292501 is a MF Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length1.713
Number of flutes3
Overall length3.156
OversizeNo
Shank diameter0.323
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)16
Thread size (mm)M14x1.5
Thread standardMF
