OSG

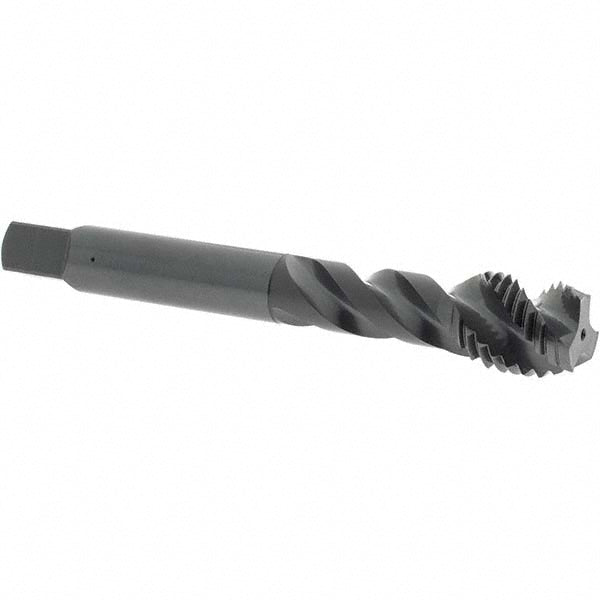

M16x2 M Vanadium High-Speed Steel Tap, Steam Oxide - OSG 2292901
MFR# 2292901Series 229
$112.84List $144.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingSteam Oxide
Description
The OSG 2292901 is a M Vanadium High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length2.433
Number of flutes3
Overall length4.331
OversizeNo
Shank diameter0.59
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)16
Thread size (mm)M16x2
Thread standardM
