OSG

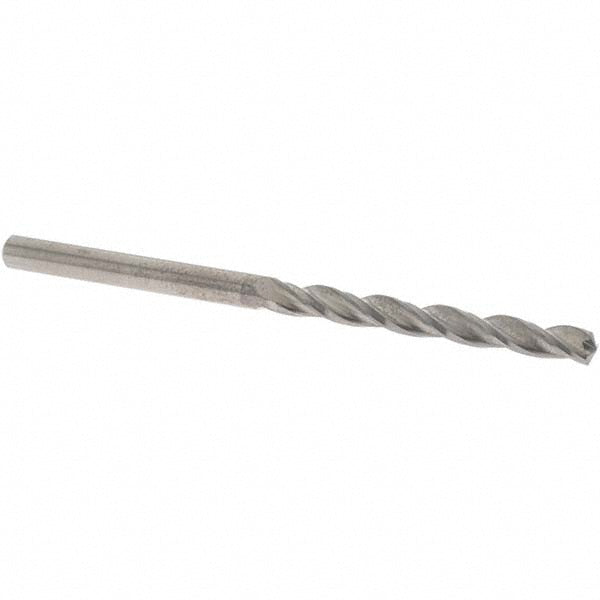

1/8" Solid Carbide Drill Bit, 150° point - OSG 233-1250
MFR# 233-1250Series 233
$21.76List $27.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/8
Flutes3
Description
The OSG 233-1250 is a 1/8" Solid Carbide drill bit, 150° point. Suited for steel, cast iron. 1-1/4 flute length, 2-1/4 overall length. Series 233.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.013 mm
Drill bit finish coatingBright/Uncoated
Drill bit materialSolid Carbide
Drill bit size in1/8
Drill bit size range0.1000 - 0.1500
Drill point angle degrees150
Flute length in1-1/4
Flute typeSpiral
Number of flutes3
Overall length in2-1/4
Point typeWeb-Thinned
Primary workpiece materialSteel; Cast Iron
Shank diameter in1/8
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
