OSG

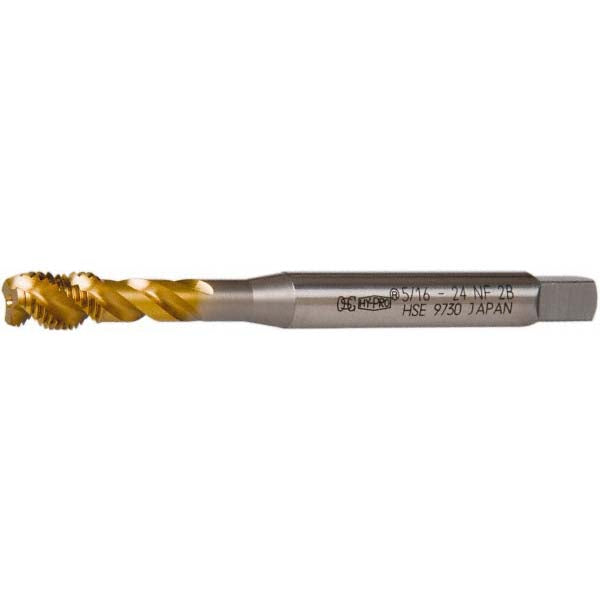

5/16-24 UNF Vanadium High-Speed Steel Tap, TiN - OSG 2331205
MFR# 2331205Series 230
$67.14List $86.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
CoatingTiN
Description
The OSG 2331205 is a 5/16-24 UNF Vanadium High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiN
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length1.3779527559551
Number of flutes3
Overall length3.543378661417
OversizeNo
Shank diameter0.318
Square length0.375
Square size0.238
Threads per inch24
Thread directionRight Hand
Thread length0.44488188976378
Thread size in5/16-24
Thread standardUNF
