OSG

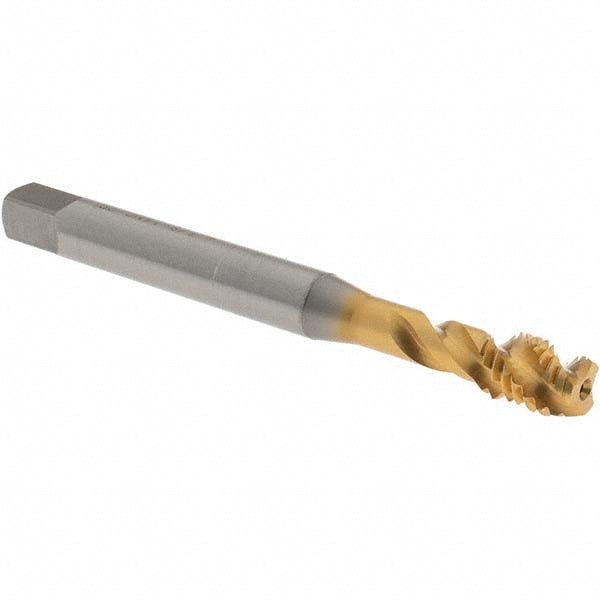

3/8-16 UNC Vanadium High-Speed Steel Tap, TiN - OSG 2331605
MFR# 2331605Series 230
$68.44List $87.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingTiN
Description
The OSG 2331605 is a 3/8-16 UNC Vanadium High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiN
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length1.3779527559551
Number of flutes3
Overall length3.93778741575
OversizeNo
Shank diameter0.381
Square length0.4375
Square size0.286
Threads per inch16
Thread directionRight Hand
Thread length0.5
Thread size in3/8-16
Thread standardUNC
