5/8-11 UNC Vanadium High-Speed Steel Tap, TiN - OSG 2333205
MFR# 2333205Series 230
$157.57List $202.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-11
CoatingTiN
Description

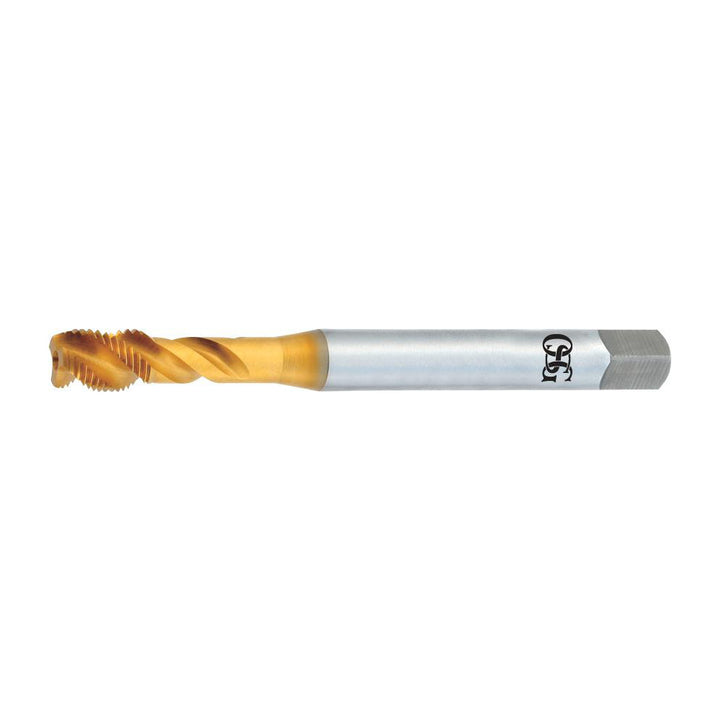

The OSG 2333205 is a 5/8-11 UNC Vanadium High-Speed Steel tap with a TiN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiN
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length2.1259842519685
Number of flutes4
Overall length4.337866141732
OversizeNo
Shank diameter0.48
Square length0.5625
Square size0.36
Threads per inch11
Thread directionRight Hand
Thread length0.728346456692913
Thread size in5/8-11
Thread standardUNC
