OSG

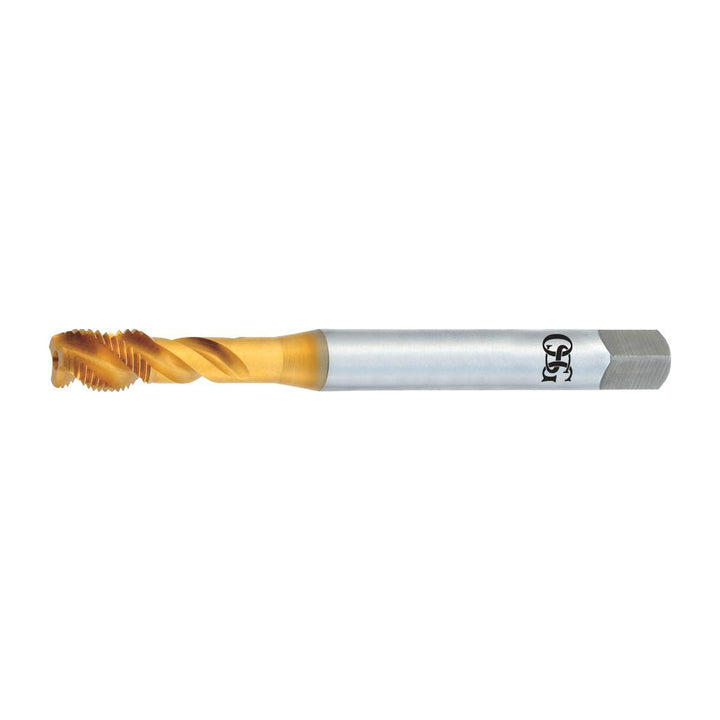

3/4-10 UNC Vanadium High-Speed Steel Tap, TiN - OSG 2333605
MFR# 2333605Series 230
$194.46List $249.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
CoatingTiN
Description
The OSG 2333605 is a 3/4-10 UNC Vanadium High-Speed Steel tap with a TiN finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishTiN
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length2.433786614173
Number of flutes4
Overall length4.921259842519685
OversizeNo
Shank diameter0.59
Square length0.6875
Square size0.442
Threads per inch10
Thread directionRight Hand
Thread length0.799212598425197
Thread size in3/4-10
Thread standardUNC
