OSG

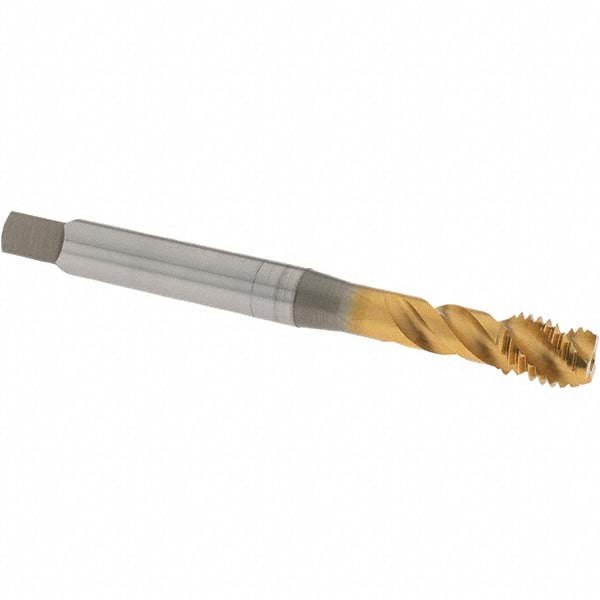

M10x1.5 M Vanadium High-Speed Steel Tap, TiN - OSG 2391805
MFR# 2391805Series 239
$87.02List $111.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTiN
Description
The OSG 2391805 is a M Vanadium High-Speed Steel tap with a TiN finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit6H
Coating finishTiN
Coolant throughYes
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialVanadium High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Cast Iron; Die Steel; Hardened Steel; Stainless Steel
Neck length (mm)39
Number of flutes3
Overall length (mm)1
OversizeNo
Shank diameter0.3810
Square length0
Square size0
Threads per inch0
Thread directionRight Hand
Thread length (mm)12
Thread size (mm)M10x1.5
Thread standardM
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
